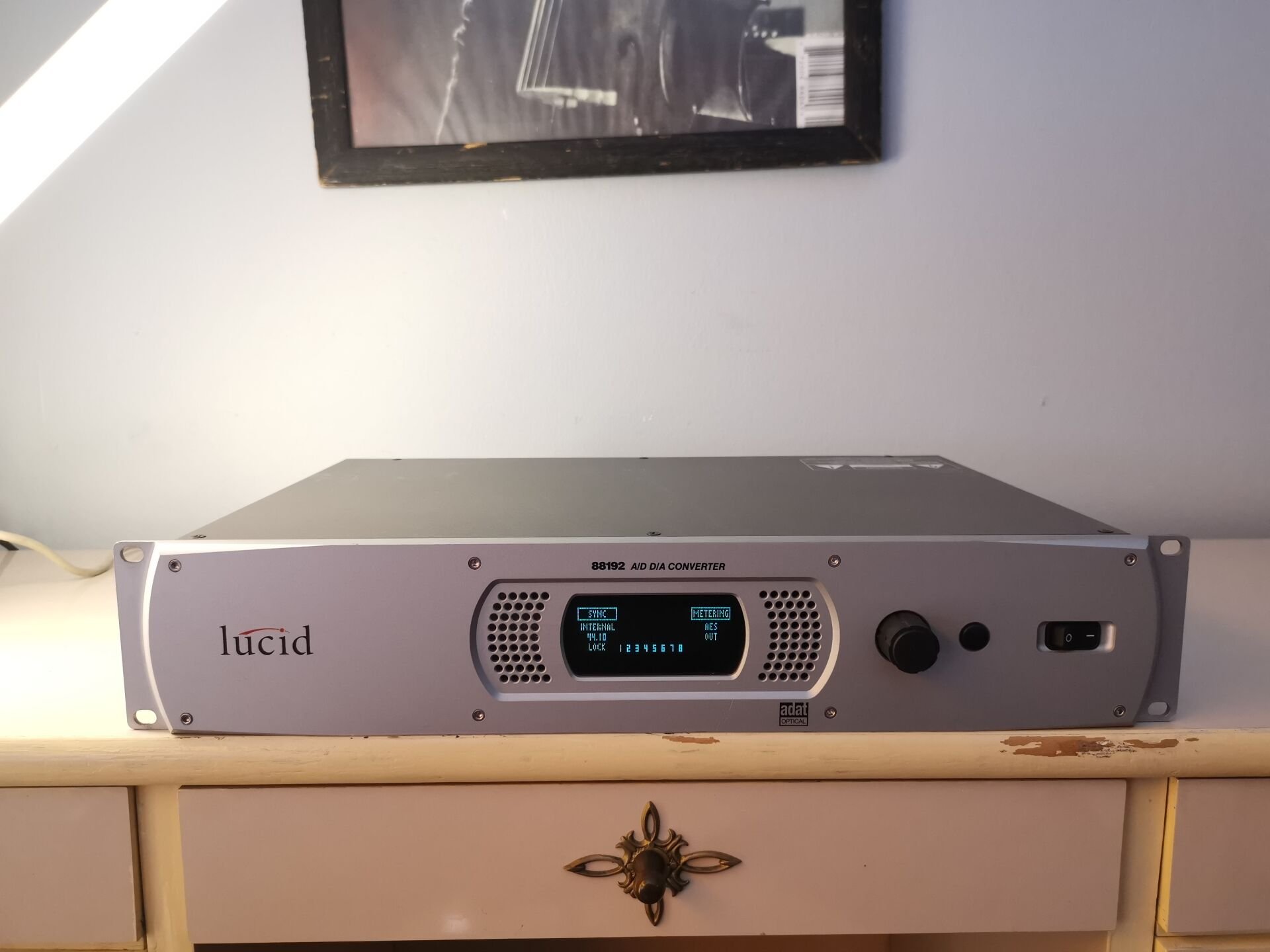

Lucid 8 Channel Analog to Digital and Digital to Analog Converter *DAC (88192)
10.000,00 TL
Stok Kodu
67W763US1C
* 1.420,89 TL den başlayan taksitlerle!
-
ADC 24-bit delta/sigma DAC 24-bit delta/sigma Sample Rates 30kHz to 200kHz, depending on clock source Analog Inputs 8 x XLR Analog Outputs 8 x XLR Digital Inputs 4 x XLR AES/EBU
2 x ADAT LightpipeDigital Outputs 4 x XLR AES/EBU
2 x ADAT LightpipeWord Clock 2 x BNC Wordclock I/O Dynamic Range >115dB, A-weighted Frequency Response 10Hz to 40kHz, @ sampling rates >88kHz (+/- 0.5dB) THD + N A/D: <-105dBA @ 1kHz, -1.0dBFS
D/A: <-95dBA @ 1kHz, -1.0dBFSDimensions (WxDxH) 19" x 9" x 3 1/2" (482 x 228 x 88 mm) Weight 17 lbs (7.7 kg) shipping Specialties Soft clip for peak limiting in the analog domain
Bu ürüne ilk yorumu siz yapın!
